European double girder overhead crane
1.European double girder overhead crane features:
▪ Compact Size Hoist Trolley and reasonable hook design make more space for working.
▪ Unique Wheel Frame Design help adjust the balance and installation. the noise is low.
▪ Light load weight and wheel pressure makes the crane traveling smoothly and accurate.
▪ Two control ways. Pendent control panel could contact with hoist trolley or move independently by the main girder guide. The steeples lift or travel speed could be controlled by the control panel. Remote control make operator free moving on ground. Thousands of frequency point make cranes in one workshop working without Suffering Interference.
2.European double girder overhead crane parameters:
Lifting height: 15m
Lifting speed: 5/0.8m/min
Trolley speed: 5/20m/min
3.European double girder overhead crane feature:
Height:Reduce 20%-30% compared with the traditional crane
Wheel pressure:Reduce 15%~20%
Load weight:Reduce 20%~30%
Size:small size, increase the working area.
Structure:compact structure and reasonable, reduce workshop construction cost
4.Trade terms & Packaging
▪ Payment terms: FOB, CFR and CIF are common trade terms. 30%T/T in advance, the balance paid before shipment or irrevocable L/C.
▪ Delivery time: within 15 ~30 business day after the receipt of deposit.
▪ Packaging: wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.
▪ Transportation: generally 5 days to 10 days to destination port.
5..European double girder overhead crane Safety feature
▪ Weight overload protection device
▪ Lifting height limit device
▪ Voltage lower protection function
▪ Phase sequence protection function
▪ Emergency stop function
6.After sales-services
▪ 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
▪ 1 years spare-parts provided for better maintenance.
▪ Professional technical staffs provide installation, commissioning and training services.
▪ Delivery with English user manual, parts manual, product certification and other relevant certificates.
▪ Technical advisory for any time.
7. Two structure forms about european double girder overhead crane as below, and the detailed parameters please see the parameter item.
European double girder overhead crane parameters:

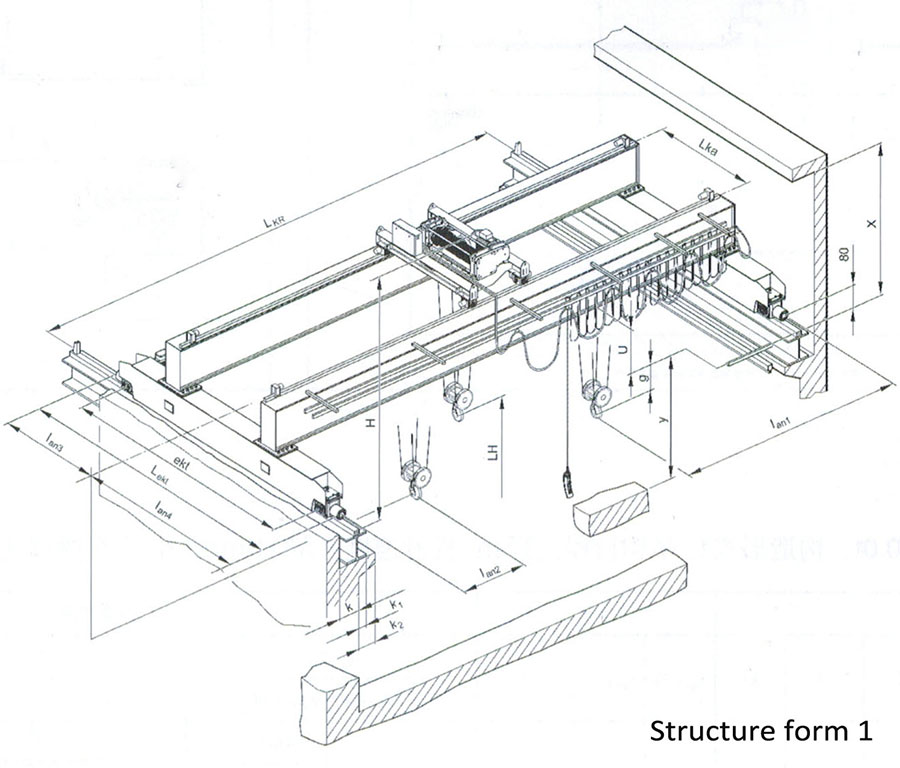

Structure form1: Lifting height: 15m Lifting speed: 5/0.8m/min Trolley speed: 5/20m/min
Main beam | Trolley | End beam | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LKR | GG | Rmax | X | H | U | Ian11) | Ian21) | g | y | Ian3/Ian4 | d | eKT | Iekt | DPZ | b | |||
VKR=40 | VKR=60 | VKR=40 | VKR=60 | VKR=40 | VKR=60 | |||||||||||||
4 | 2760 | 4191 | 1775 | 1675 | -390 | 930 | 1040 | -101 | 890 | 1480 | 1480 | 160 | 2500 | 2960 | 2960 | 100 | 100 | 200 |
5 | 2954 | 4473 | 1500 | 3000 | 130 | |||||||||||||
6 | 3142 | 4676 | ||||||||||||||||
7 | 3336 | 4837 | ||||||||||||||||
8 | 3605 | 4988 | 1777 | 1677 | -103 | |||||||||||||
9 | 3972 | 5146 | 1875 | 1775 | -201 | |||||||||||||
10 | 4195 | 5255 | ||||||||||||||||
11 | 4644 | 5410 | 1975 | 1875 | -301 | |||||||||||||
12 | 5114 | 5564 | 2075 | 1975 | -490 | -401 | 990 | 1504 | 1524 | 200 | 3008 | 3048 | 225 | |||||
13 | 5602 | 5718 | 2079 | 1979 | -405 | 1556 | 3112 | 160 | ||||||||||
14 | 5995 | 5842 | 2175 | 2075 | -501 | |||||||||||||
15 | 6396 | 5966 | 2177 | 2077 | -503 | 1524 | 3048 | 130 | ||||||||||
16 | 6978 | 6132 | 2181 | 2081 | -507 | |||||||||||||
17 | 7597 | 6306 | 2185 | 2085 | -511 | |||||||||||||
18 | 8413 | 6526 | 2191 | 2091 | -517 | |||||||||||||
19 | 9176 | 6861 | 2275 | 2175 | -601 | 1849 | 1881 | 3150 | 3698 | 3762 | ||||||||
20 | 9857 | 7044 | 2277 | 2177 | -603 | |||||||||||||
21 | 10337 | 7177 | 2375 | 2275 | -701 | |||||||||||||
22 | 10752 | 7285 | ||||||||||||||||
23 | 11475 | 7483 | 2377 | 2277 | -703 | |||||||||||||
24 | 11991 | 7622 | 2475 | 2375 | -801 | 1881 | 3762 | 160 | ||||||||||
25 | 12616 | 8649 | 4000 | 4612 | 4612 | |||||||||||||
26 | 13436 | 8864 | 2477 | 2377 | -803 | 2306 | 2306 |

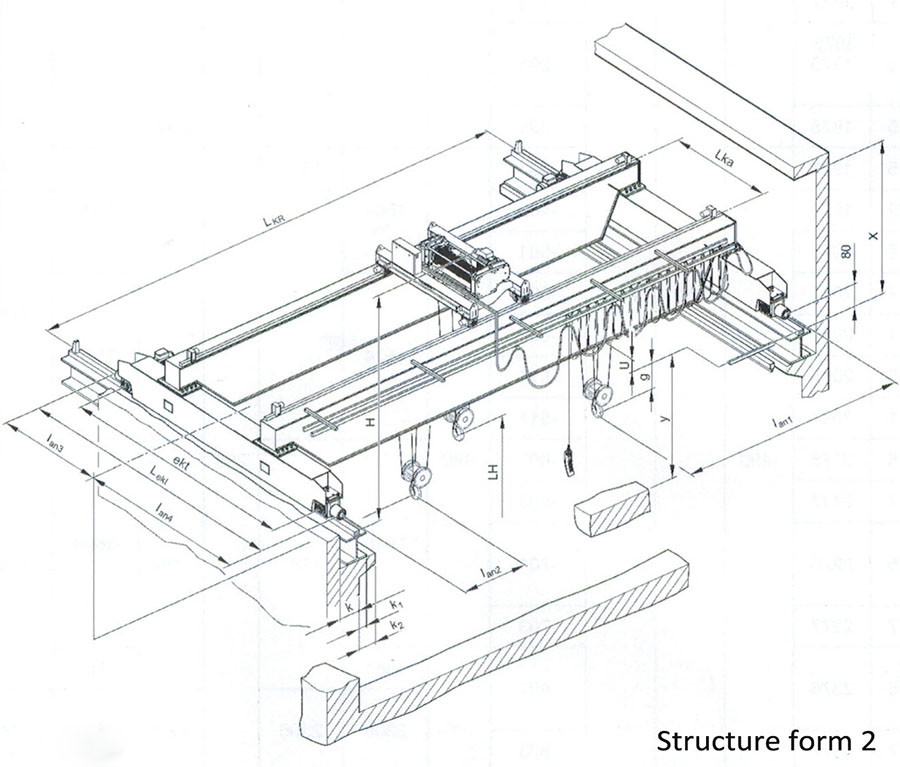

Structure form 2: Lifting height: 15m Lifting speed: 5/0.8m/min Trolley speed: 5/20m/min
Main beam | Trolley | End beam | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LKR | GG | Rmax | X | H | U | Ian11) | Ian21) | g | y | Ian3/Ian4 | d | eKT | Iekt | DPZ | b | |||
VKR=40 | VKR=60 | VKR=40 | VKR=60 | VKR=40 | VKR=60 | |||||||||||||
4 | 2760 | 4191 | 1775 | 1675 | -390 | -101 | 890 | 1480 | 1480 | 160 | 2500 | 2960 | 2960 | 100 | 100 | 200 | ||
5 | 2954 | 4473 | 1500 | 3000 | 130 | |||||||||||||
6 | 3142 | 4676 | ||||||||||||||||
7 | 3336 | 4837 | ||||||||||||||||
8 | 3605 | 4988 | 1777 | 1677 | -103 | |||||||||||||
9 | 3972 | 5146 | 1679 | 1579 | -194 | 930 | 1040 | -5 | 694 | 1480 | 1500 | 160 | 2500 | 2960 | 3000 | 100 | 130 | 200 |
10 | 4195 | 5255 | ||||||||||||||||
11 | 4644 | 5410 | -94 | 594 | ||||||||||||||
12 | 5114 | 5564 | 1879 | 1779 | -294 | -205 | 794 | 1504 | 1524 | 200 | 3008 | 3048 | 225 | |||||
13 | 5602 | 5718 | -290 | 790 | 1556 | 3112 | 160 | |||||||||||
14 | 5995 | 5842 | -194 | 694 | ||||||||||||||
15 | 6396 | 5966 | 1881 | 1781 | -207 | 1524 | 3048 | 130 | ||||||||||
16 | 6978 | 6132 | -190 | 690 | ||||||||||||||
17 | 7597 | 6306 | -186 | 686 | ||||||||||||||
18 | 8413 | 6526 | 1887 | 1787 | -213 | |||||||||||||
19 | 9176 | 6861 | 1879 | 1779 | -94 | -205 | 594 | 1849 | 1881 | 3150 | 3698 | 3762 | ||||||
20 | 9857 | 7044 | -92 | 592 | ||||||||||||||
21 | 10337 | 7177 | 6 | 506 | ||||||||||||||
22 | 10752 | 7285 | ||||||||||||||||
23 | 11475 | 7483 | 8 | 508 | ||||||||||||||
24 | 11991 | 7622 | 106 | 606 | 1881 | 3762 | 160 | |||||||||||
25 | 12616 | 8649 | 2306 | 2306 | 4000 | 4612 | 4612 | |||||||||||
26 | 13436 | 8864 | 108 | 608 |
