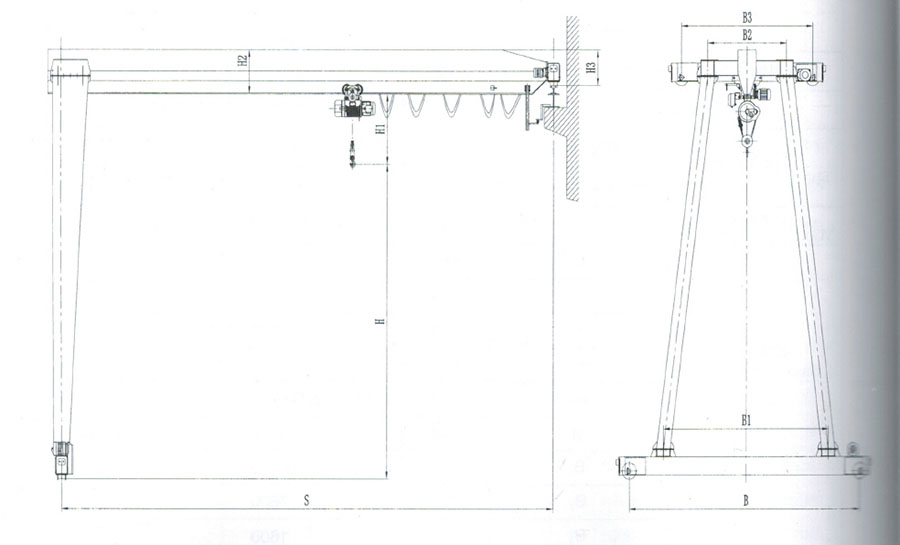

2~10ton MHB Model Electric Hoist Semi Gantry Crane
BMH electric hoist gantry crane is used together with CD MD electric hoist. It is a track traveling small and medium size crane. The product is a general crane which used in meching shop to lift goods.the product has ground controlling or remote controlling system, using the special gear box can make the workshop widely.
2~10ton MHB Model Electric Hoist Semi Gantry Crane Parameters
1.Lifting capacity:2t 5t 10t
2.Span:10m 12m 16m 20m
3.Lifting height: 6m
4.Reducer:LDAC1 LDA1device
5.Working tempture:-20°c-40°c
| Lifting capacity | t | 2 | 10 | |||
|---|---|---|---|---|---|---|
| Span | m | 10/12/16/20 | 10/12/16/20 | |||
| Lifting height | m | 6 | ||||
| Travelling mechanism | Travelling speed | Ground | M/min | 20 | ||
| Controling Room | 20 30 | |||||
| Motor | Ground | ZDY(D)121-4/0.8*2 ZDY(D)121-4/1.5*2 | ||||
| Controling Room | ZDR100-4/(D)1.5*2 | |||||
| Electric hoist | Type | CD/MD | ||||
| Lifting speed | M/min | 8 0.8/8 | ||||
| Traveling speed | M/min | 20(30) | ||||
| Working System | A4 | |||||
| Steel track recommended | P24 | |||||
| Power resource | 3 Phase 380V 50HZ or can be customized | |||||
Semi gantry crane| Lifting capacity | t | 2 | 10 | ||
|---|---|---|---|---|---|
| Span | m | 10/12/16/20 | 10/12/16/20 | ||
| Lifting height | m | 6 | |||
| Traveling | Traveling speed | Ground | 20 | ||
| Mechanism | Controlling Room | 20 30 | |||
| Motor | Ground | ZDY(D)121-4/0.8*2 ZDY(D)121-4/1.5*2 | |||
| Controlling Room | ZDR100-4/(D)1.5*2 | ||||
| Electric | Type | CD/MD | |||
| Hoist | Lifting speed | 8 0.8/8 | |||
| Traveling speed | 20(30) | ||||
| Working System | A4 | ||||
| Steel track recommended | P24 | ||||
| Power resource | 3 Phase 380V 50HZ or can be customized | ||||
